CVD Furnace Deposition Equipment for Semiconductor Material Preparation Thin Film

Packaging Details : wooden case packing

Supply Ability : 30 Piece/Pieces per Quarter

Price : USD12,000-100,000/SET

Brand Name : Jingtan

Certification : CE

MOQ : 1 set

Delivery Time : 60 days

Payment Terms : L/C/T/T

place of origin : Hunan, China

type : Induction Furnace

usage : deposition furnace

video outgoing-inspection : Provided

machinery test report : Provided

core components : PLC

brand name : Jingtan

voltage : 380

weight (t) : 2 T

power (kw) : 220

key selling points : Competitive Price

Design Temperature (℃) : 1250-2200

Woring temperature : 900-1200℃

Pressure rise rate (Pa/h) : 0.67Pa/h(150Pa/24h)

Heating method : Resistance/induction

Working atmosphere : vacuum/CH4/C3H6/H2/N2/Ar

Furnace type : Square/roundVertical/Horizontal

Furnace cooling mode : furnace shell water cooling

Infrared instrument : single/double colorimetric

Temperature uniformity : ±5

Limit vacuum Degree(Pa) : 1-100

Marketing Type : Ordinary Product

Warranty of core components : 1 Year

Applicable Industries : Other, semiconductor

Contact Now

Specification:
Vacuum deposition furnace:
Mainly used for the preparation of carbon-carbon composite materials, and the deposition furnace is mainly used for the preparation of pyrolytic carbon coating on the surface of graphite, semiconductor devices and heat-resistant scour materials.
Parameter /Model No.
JT-0305-C
JT-0505-C
JT-0608-C
JT-0608-C
JT-0812-C
JT-1120-C
JT-1218-C
JT-1520-C
Working Zone Size
φ×H(mm)
300×500
500×500
600×800
600×1200
800×1200
1100×2000
1200×1800
1500×2000
Highest Temperature
(℃)
2300
2300
2300
2300
2300
2300
2300
2300
Temperature uniformity(℃)
±5
±5
±5/±7.5
±7.5/±10
±7.5/±10
±10/±15
±10/±15
±15/±20
Limit Vacuum Degree(Pa)
1-100
1-100
1-100
1-100
1-100
1-100
1-100
1-100
Limit Vacuum Degree(Pa)
0.67
0.67
0.67
0.67
0.67
0.67
0.67
0.67
Heating method
Resistance/induction
Resistance/induction
Resistance/induction
Resistance/induction
Resistance/induction
Resistance/induction
Resistance/induction
Resistance/induction

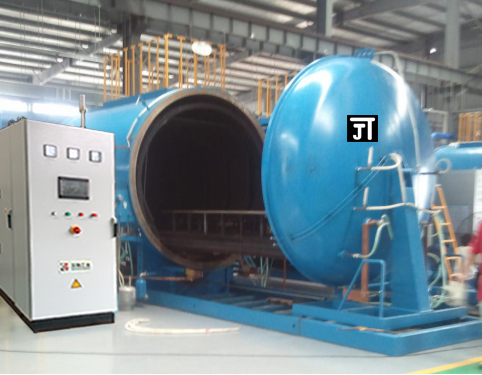

CVD Furnace Deposition Equipment for Semiconductor Material Preparation Thin Film
Design temperature
1250℃/1650℃/1800℃/2200℃
Common temperature
900~1200℃
Vacuum degree
< 50Pa
Pressure rise rate
6.67pA /h(or 150Pa/24h) in cold state of empty furnace
Heating mode
graphite resistance heating or induction heating, independent temperature control, good temperature uniformity
Atmosphere medium
vacuum /CH4/C3H6/H2/N2/Ar
CVD Furnace Deposition Equipment for Semiconductor Material Preparation Thin Film
Gas control mode
mass flow meter control, multi-channel gas path, uniform flow field, no deposition dead Angle, good deposition effect;Multi-stage and efficient exhaust treatment system, environmentally friendly, easy to clean up
Furnace type
square, round, vertical or horizontal structure (non-standard design), fully enclosed deposition chamber, good sealing effect,
strong anti-pollution ability;
Furnace cooling mode
furnace shell water cooling, external circulation quick cooling system can be selected, short cooling time, high production
efficiency;
CVD Furnace Deposition Equipment for Semiconductor Material Preparation Thin Film
Structure form
horizontal - side discharge, vertical - up/down discharge
Locking mode
manual/automatic
Shell material
inner stainless steel/all stainless steel
Insulation material
carbon felt/graphite felt/carbon fiber cured felt
Infrared instrument
single colorimetric/double colorimetric
Power supply
KGPS/IGBT(only suitable for medium frequency heating)
Product parameter:
